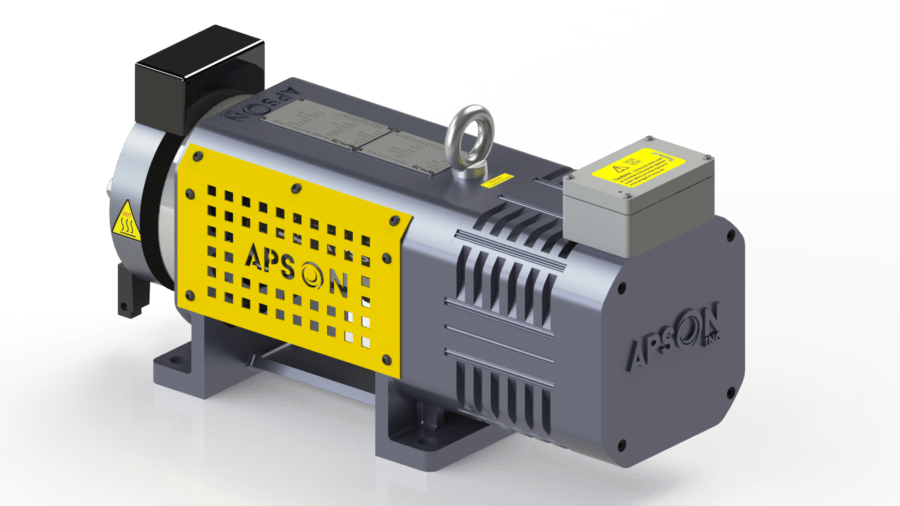

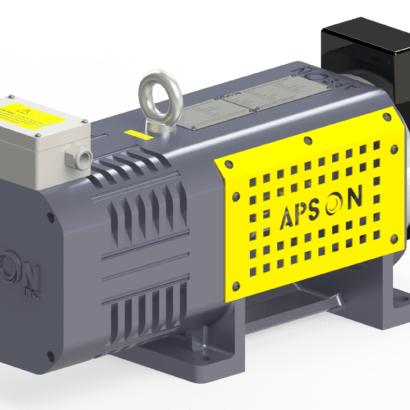

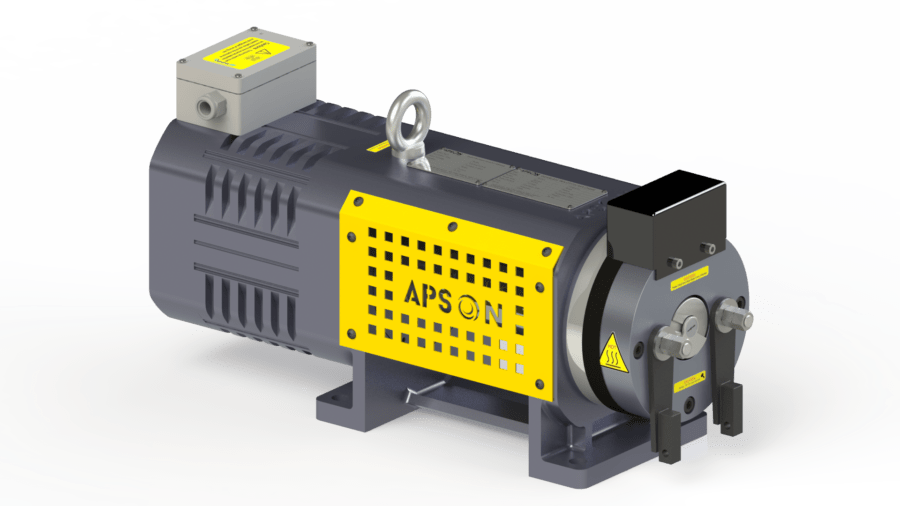

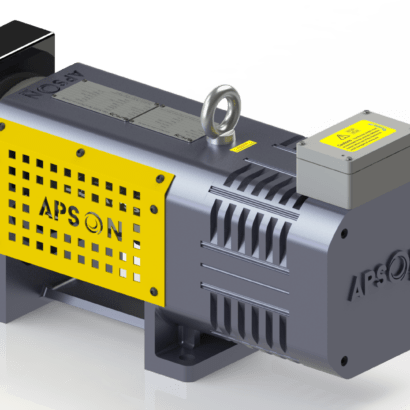

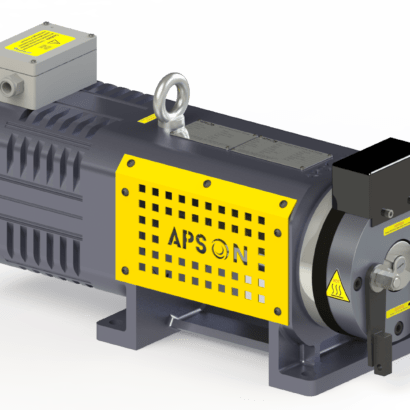

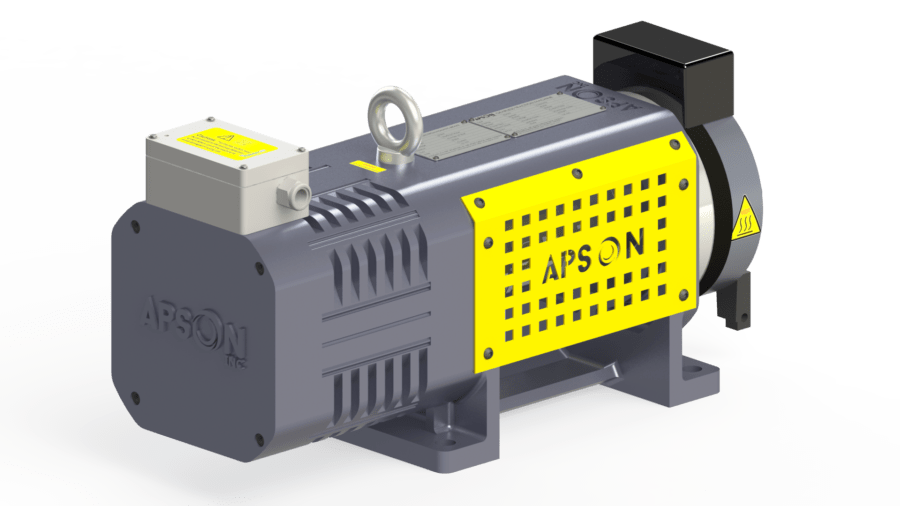

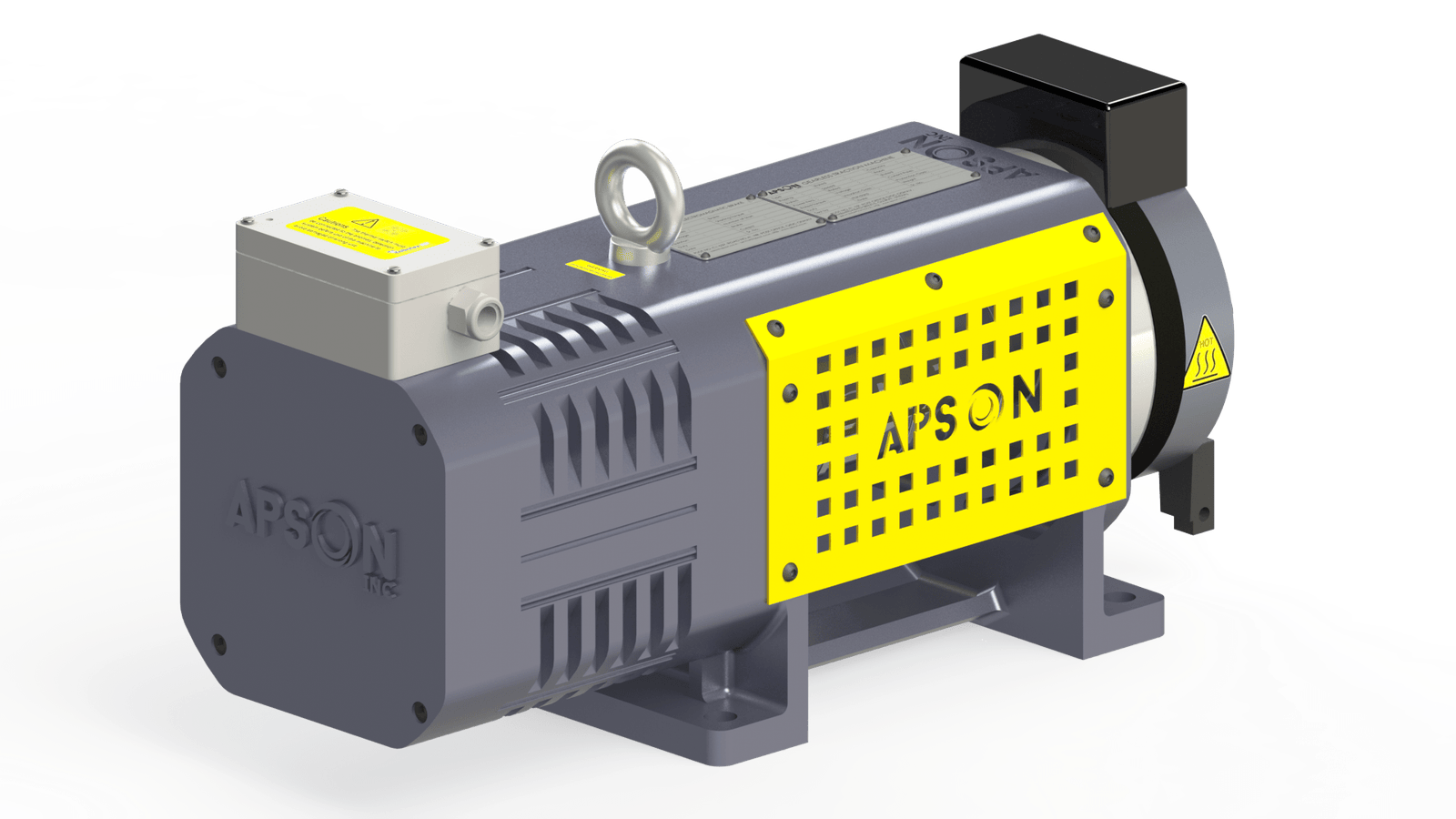

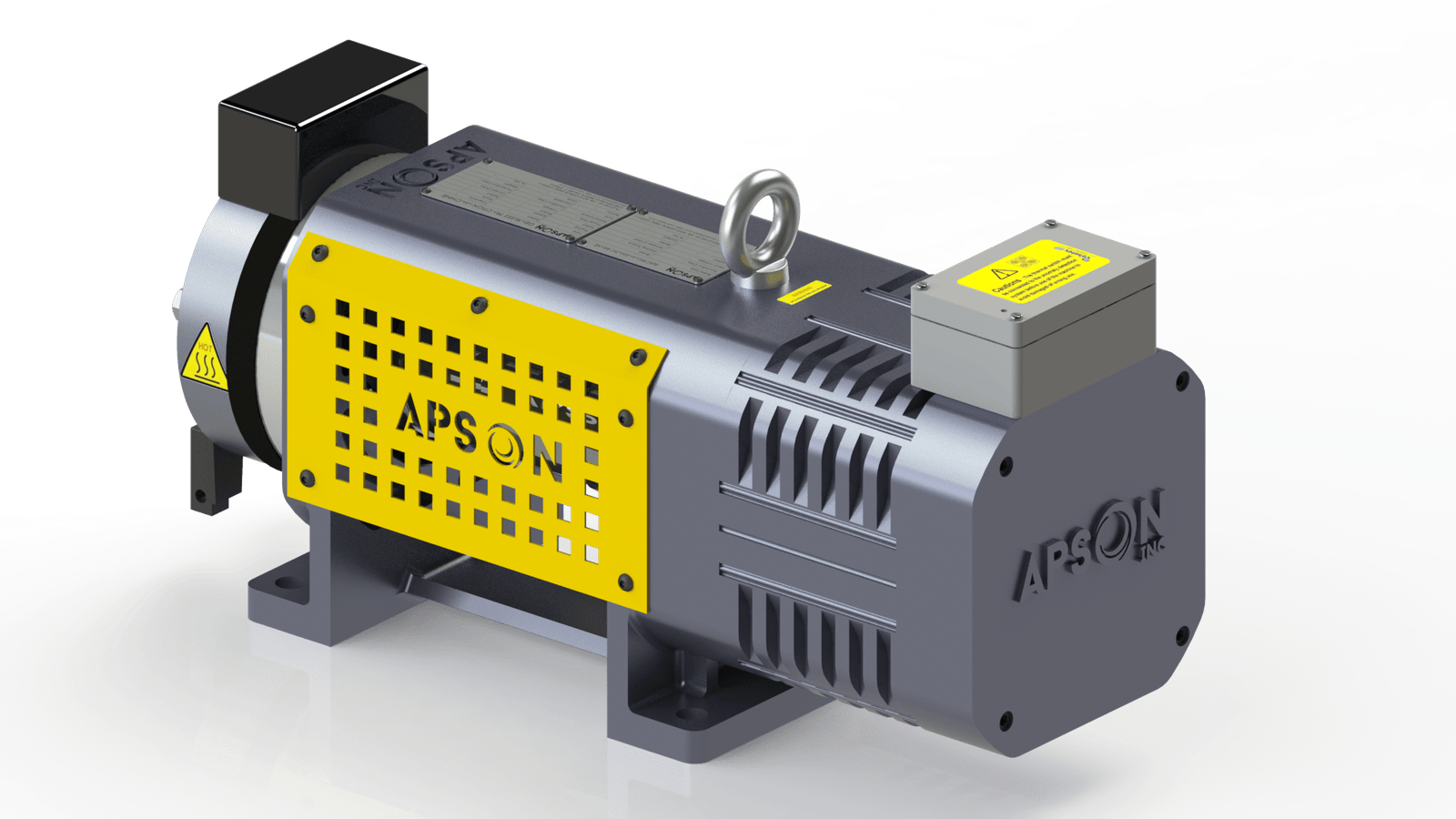

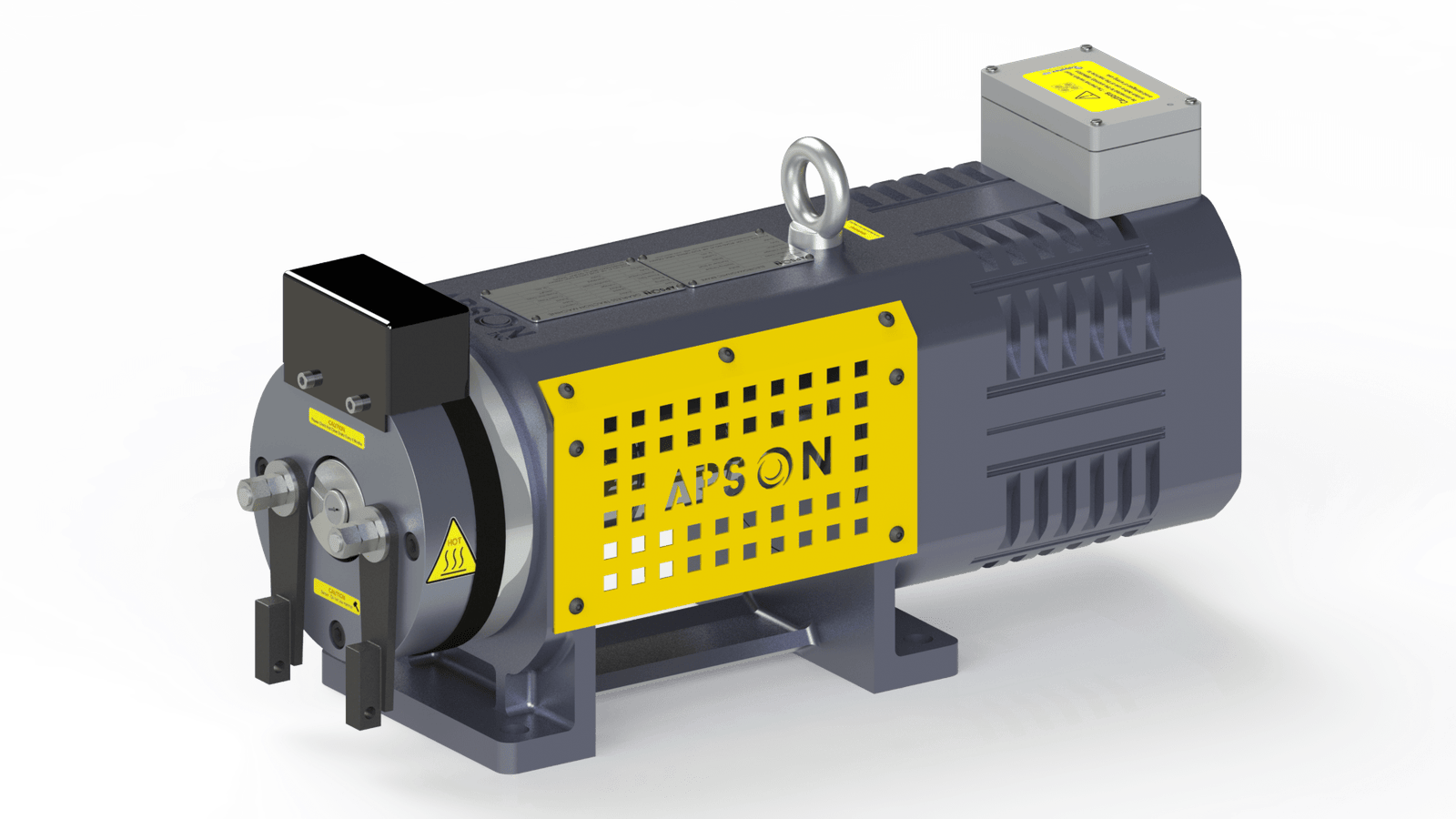

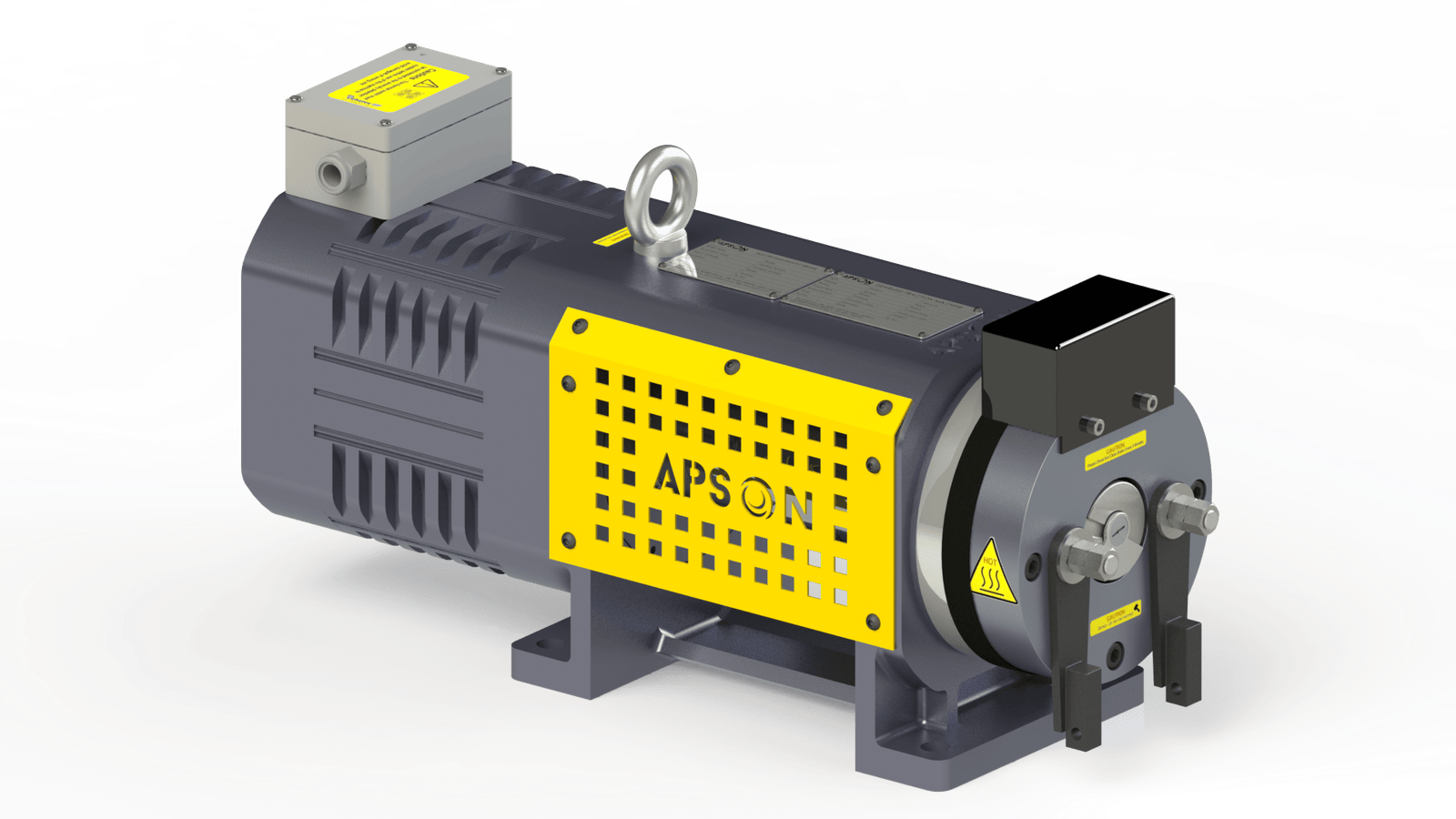

BD680-100 (AC380V – Ø100 mm)
Description
The BD680-100 is a compact, high-efficiency gearless elevator traction motor designed for light-to-medium-duty applications. Operating at AC 380 V with a Ø100 mm sheave, it delivers smooth, reliable performance, consistent torque, and excellent energy efficiency in space-sensitive installations. Engineered for precision and durability, the BD680-100 is ideal for residential and commercial elevators that require dependable operation and long-term reliability.
Additional information
| By Technology | Inner Rotor |
|---|---|
| By Type | Perfect Solution for Narrow Shaft |
| By Capacity | 680 kg |
| By Speed | 1.00 m/s |
| Rated Voltage | AC380V |
| Rated Output Power | 4.50 kW |
| Rated Current | 14.0 A |
| Rated Speed | 382 rpm |
| frequ | 76.4 Hz |
| Sheave Dia | Ø100 mm |
| torque | 100 N.m. |
| Duty Cycle | S5-40% |
| Starts Per Hour | 180 ST/H |
| Max Static Load | 2500 kg |
| Pulley Groove Type | Flat Belt |
| Roping Style | 02:01 |
| pole | 24 |
| IP Rating | IP41 |
| Insulation Class | F |
| ropes | 3 x 60 |
