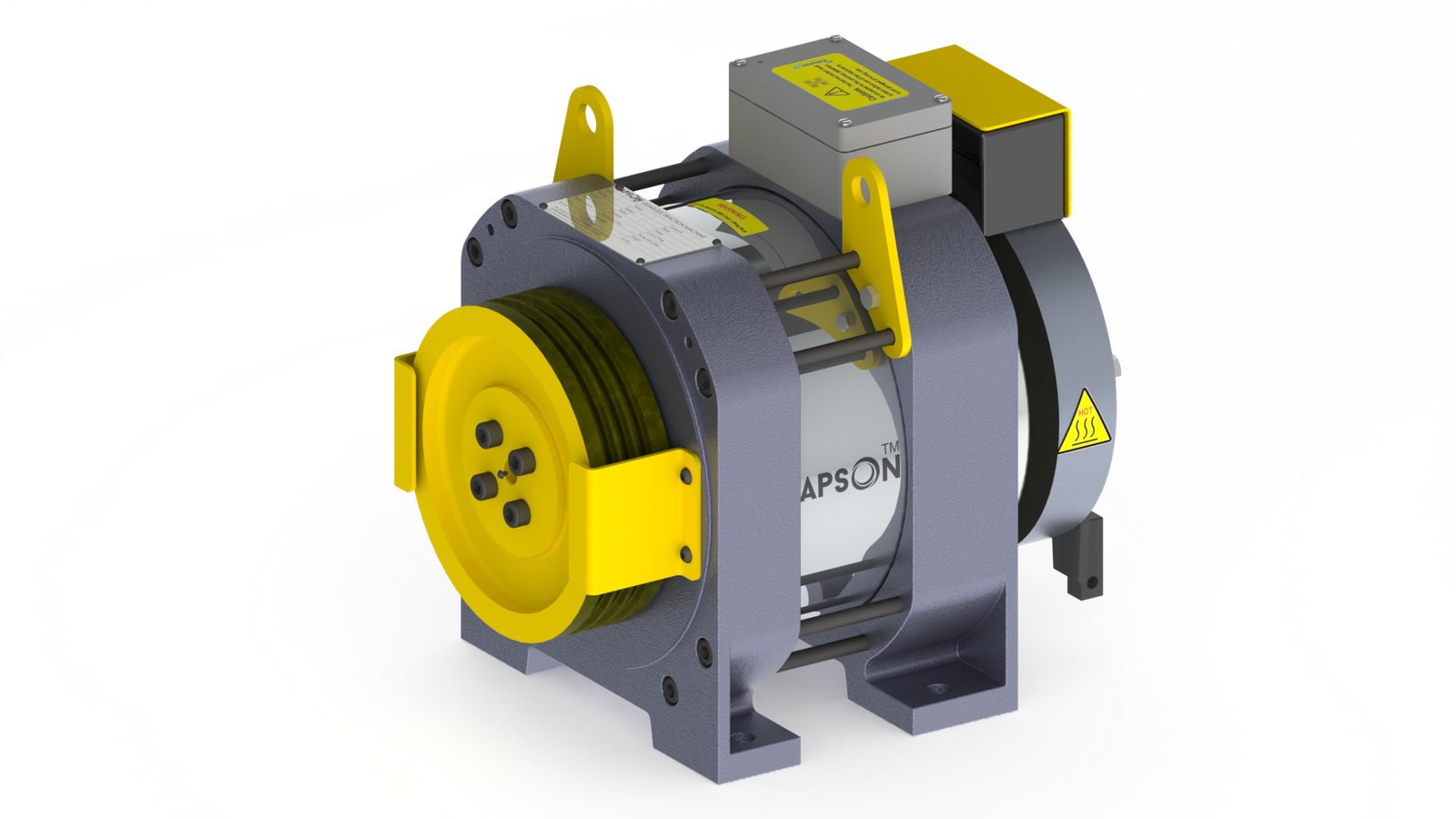

ES272-050 (AC220V – Ø200 mm)
Description
The ES272-050 is a compact, energy-efficient gearless elevator traction machine designed for low-capacity and space-constrained elevator applications. Operating at AC 220 V with a Ø200 mm sheave, it delivers smooth, reliable performance with stable torque and low power consumption. Engineered for precision and durability, the ES272-050 ensures consistent ride quality and long-term reliability, making it ideal for residential and home elevator installations.
Additional information
| By Technology | Inner Rotor |
|---|---|
| By Type | Smart choice for Home Elevator |
| By Capacity | 272 kg |
| By Speed | 0.50 m/s |
| Rated Voltage | AC220V |
| Rated Output Power | 1.00 kW |
| Rated Current | 6.0 A |
| Rated Speed | 95 rpm |
| frequ | 19.1 Hz |
| Sheave Dia | Ø200 mm |
| torque | 100 N.m. |
| Duty Cycle | S5-40% |
| Starts Per Hour | 180 ST/H |
| Max Static Load | 1500 kg |
| Pulley Groove Type | Undercut 'U' |
| Roping Style | 02:01 |
| pole | 24 |
| IP Rating | IP41 |
| Insulation Class | F |
| ropes | 4 × Ø8 × 12 |
| by-warranty | 7 Years |
