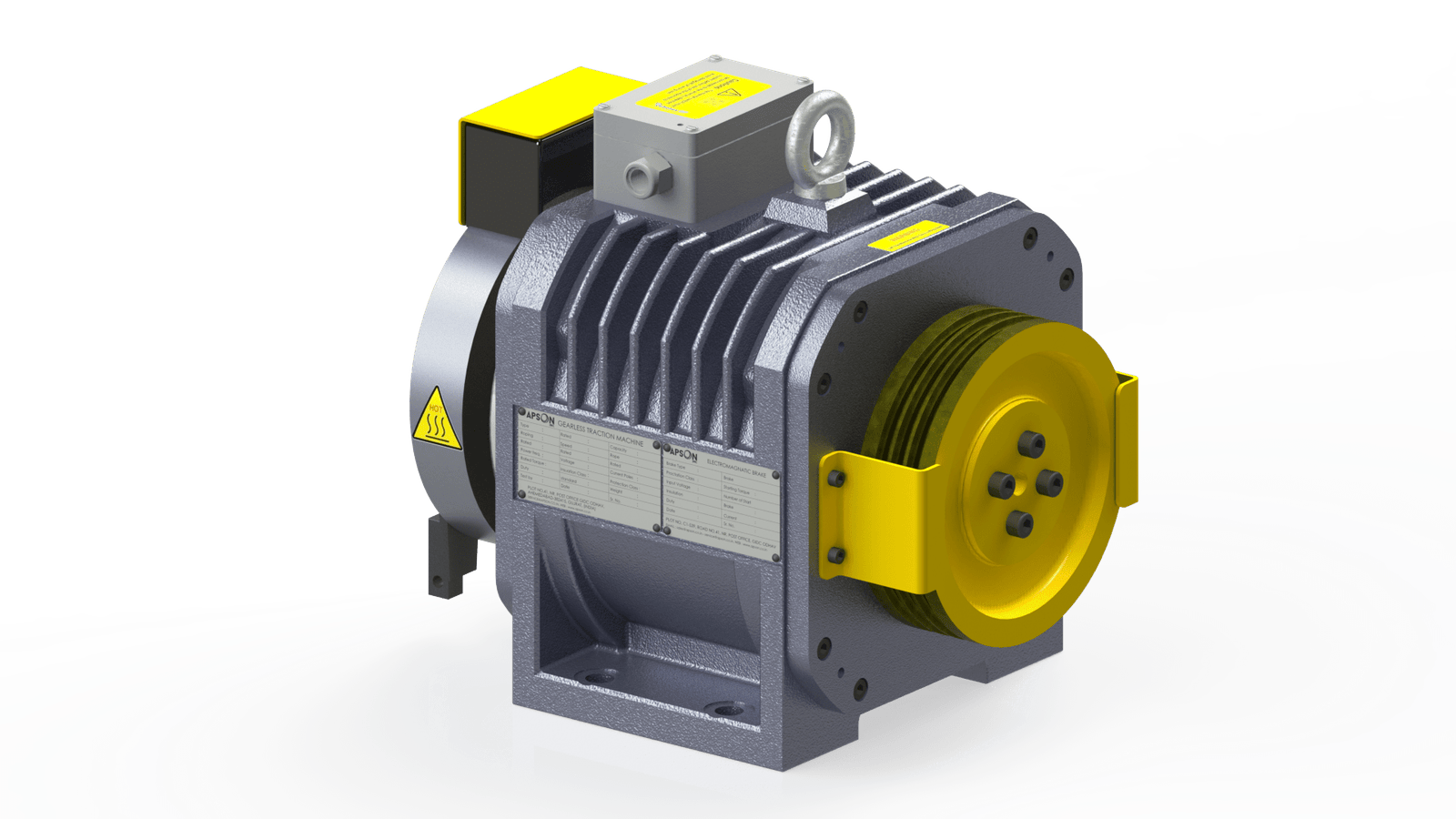

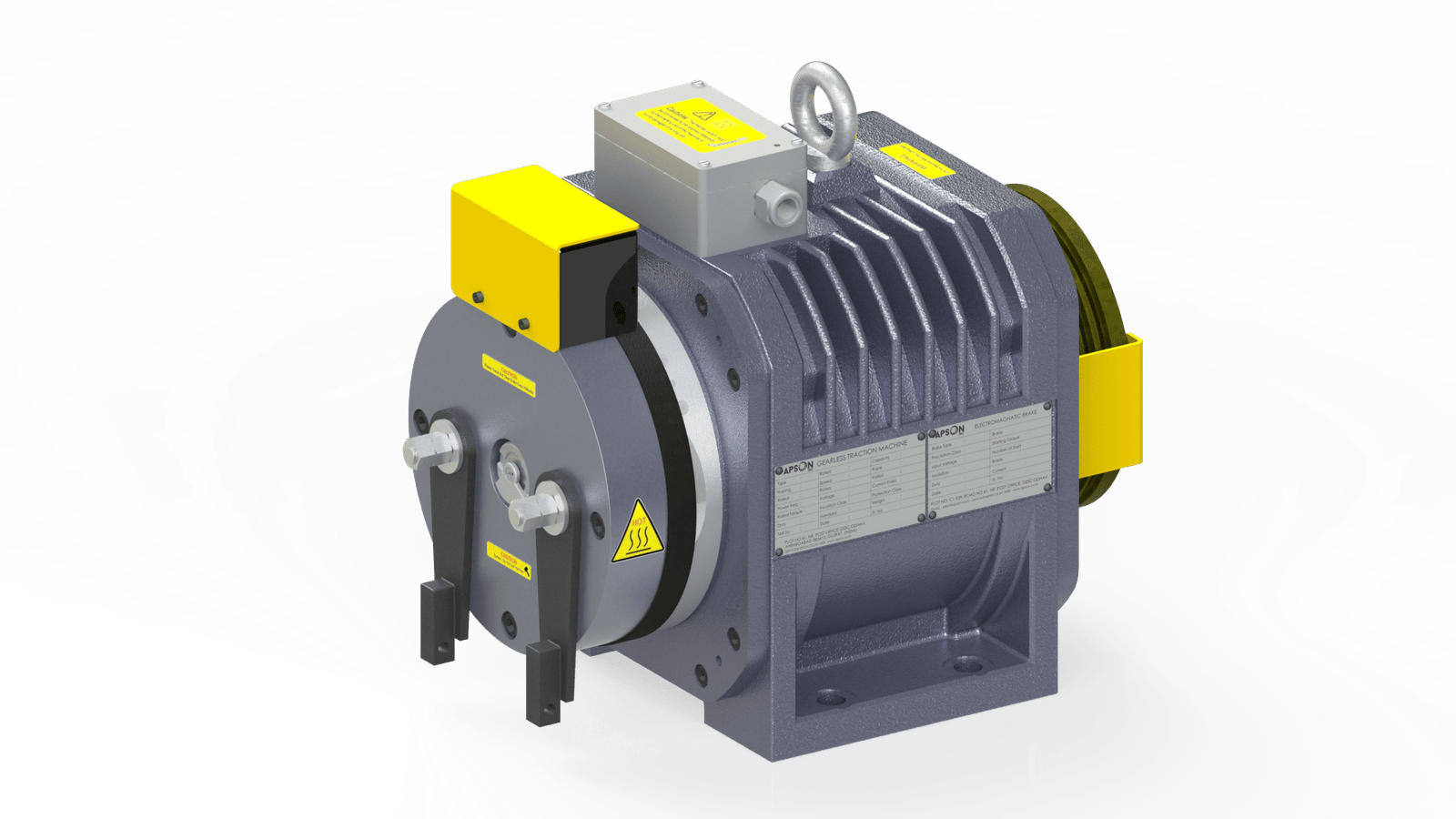

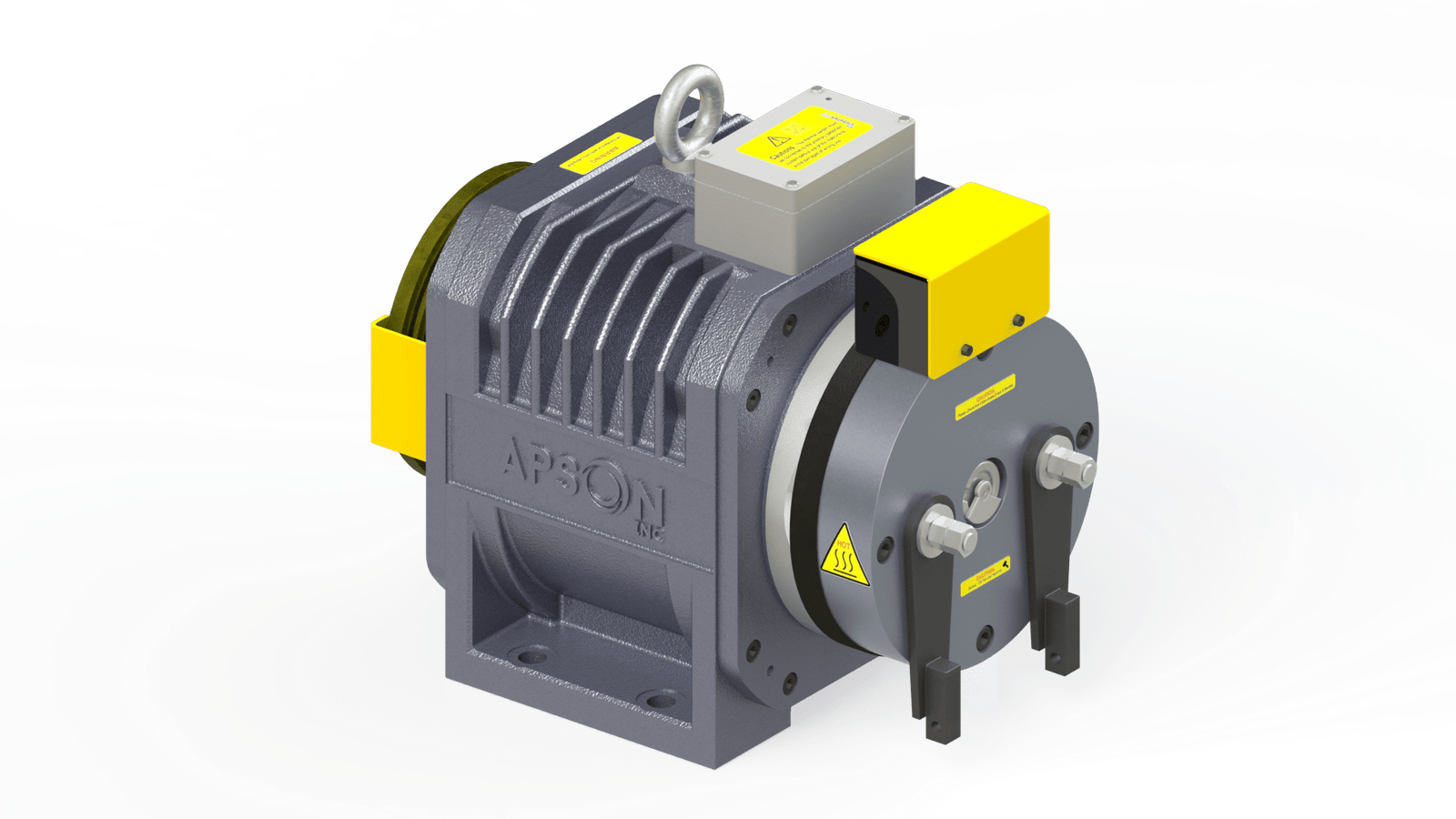

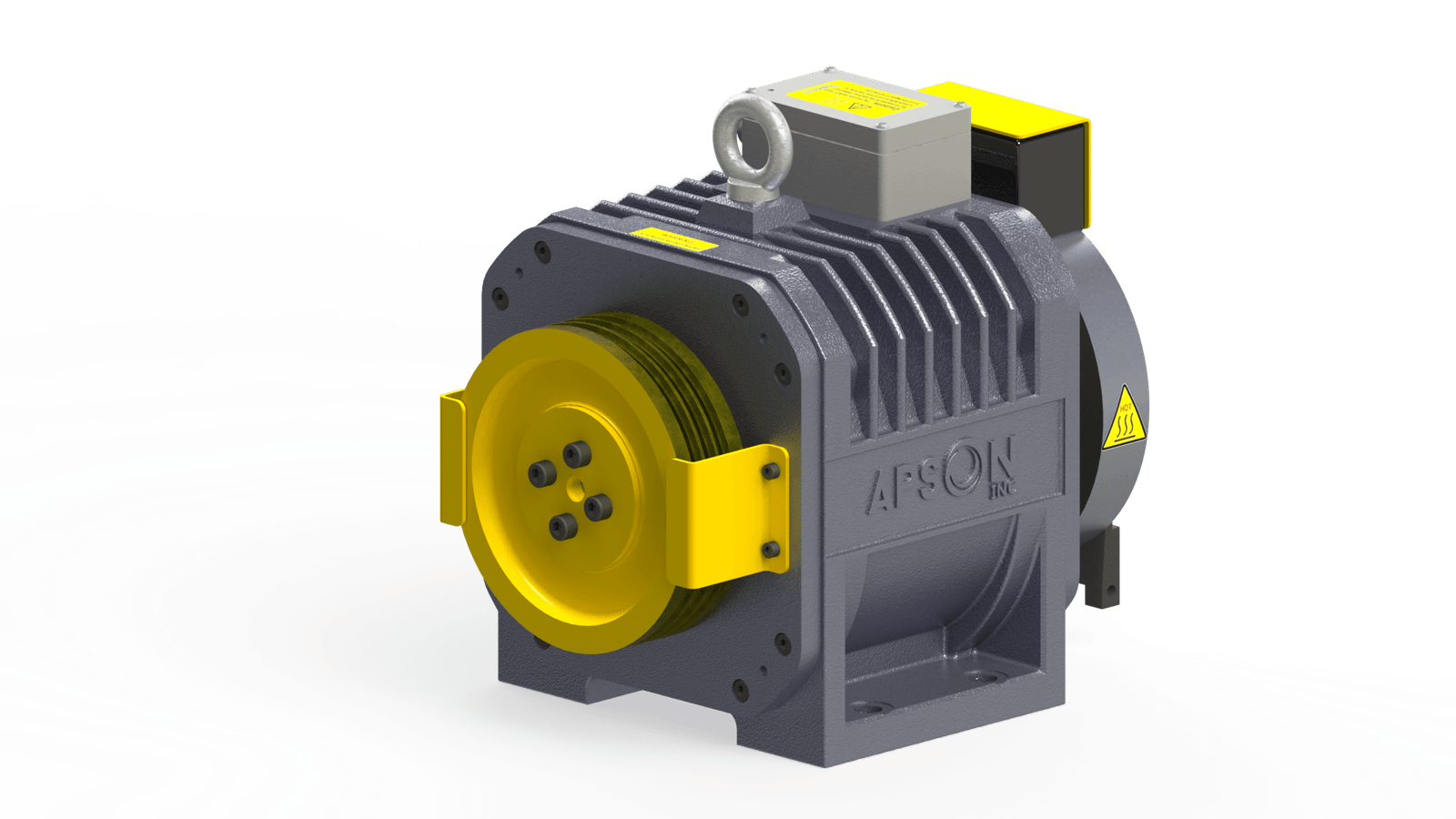

IR300-050 (AC220V – Ø200 mm)
Description
The IR300-050 is a high-performance gearless elevator traction machine designed for compact and home elevator applications. Operating at AC 220 V with a Ø200 mm sheave, it delivers reliable power and smooth motion for lifts up to 300 kg at 0.50 m/s. Built with robust inner-rotor technology and engineered for precision, the IR300-050 ensures efficient operation, consistent torque, and long-term durability, backed by a strong warranty commitment.
Additional information
| By Technology | Inner Rotor |
|---|---|
| By Type | Smart choice for Home Elevator |
| By Capacity | 300 kg |
| By Speed | 0.50 m/s |
| Rated Voltage | AC220V |
| Rated Output Power | 1.00 kW |
| Rated Current | 6.00 A |
| Rated Speed | 95 rpm |
| frequ | 19.1 Hz |
| Sheave Dia | Ø200 mm |
| torque | 100 N.m. |
| Duty Cycle | S5-40% |
| Starts Per Hour | 180 ST/H |
| Max Static Load | 3000 kg |
| Pulley Groove Type | Undercut 'U' |
| Roping Style | 02:01 |
| pole | 24 |
| IP Rating | IP41 |
| Insulation Class | F |
| ropes | 4 × Ø8 × 12 |
