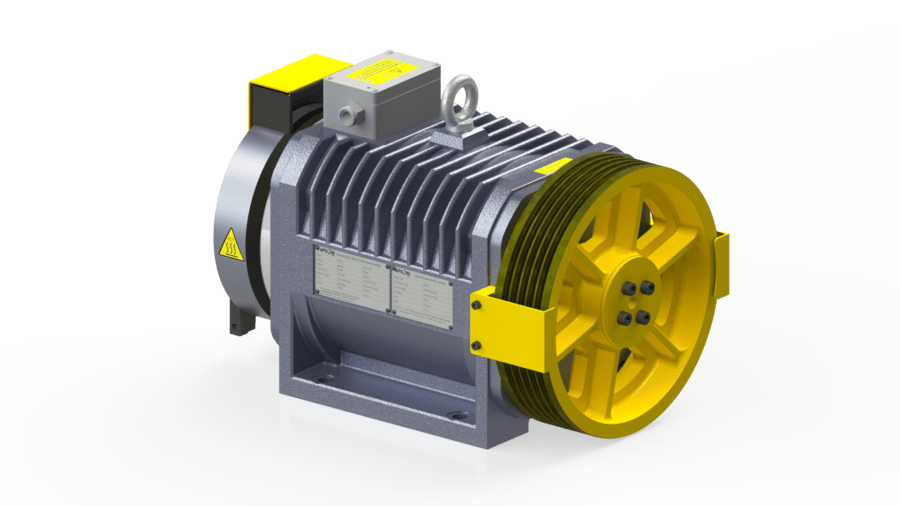

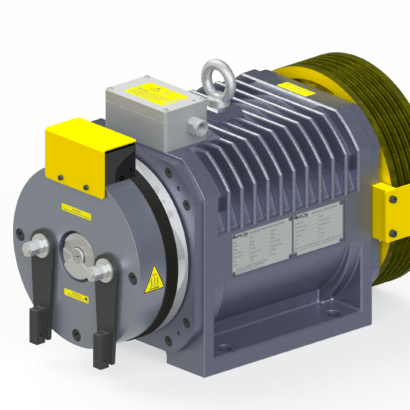

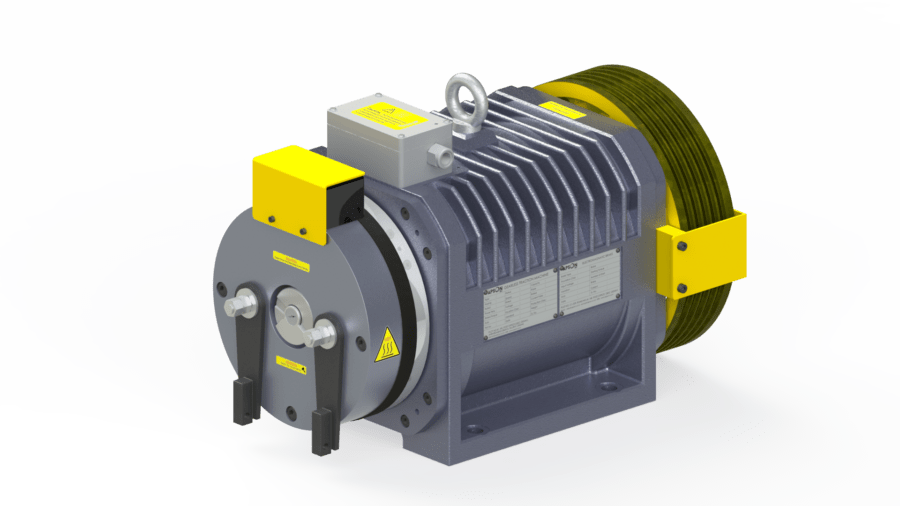

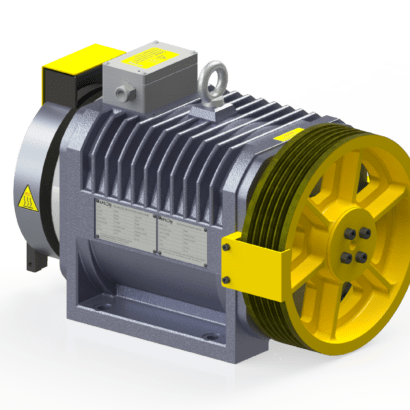

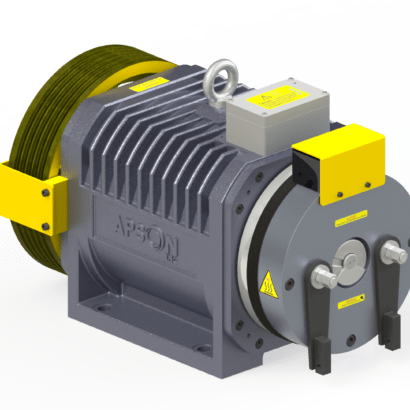

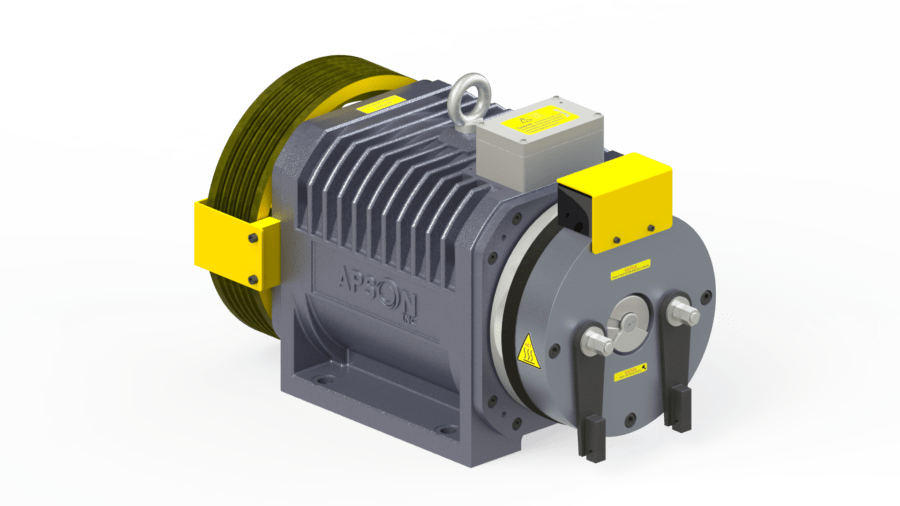

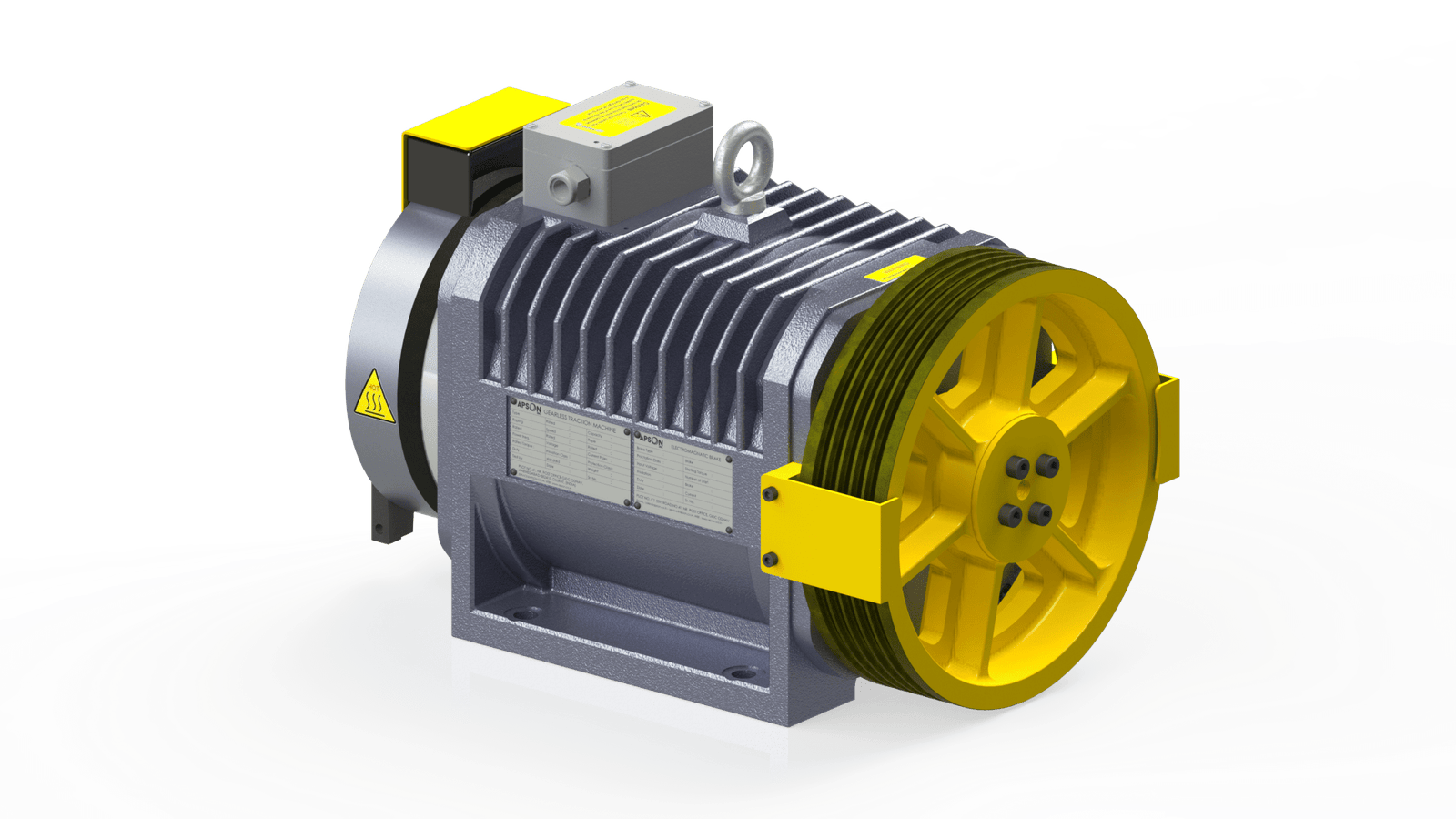

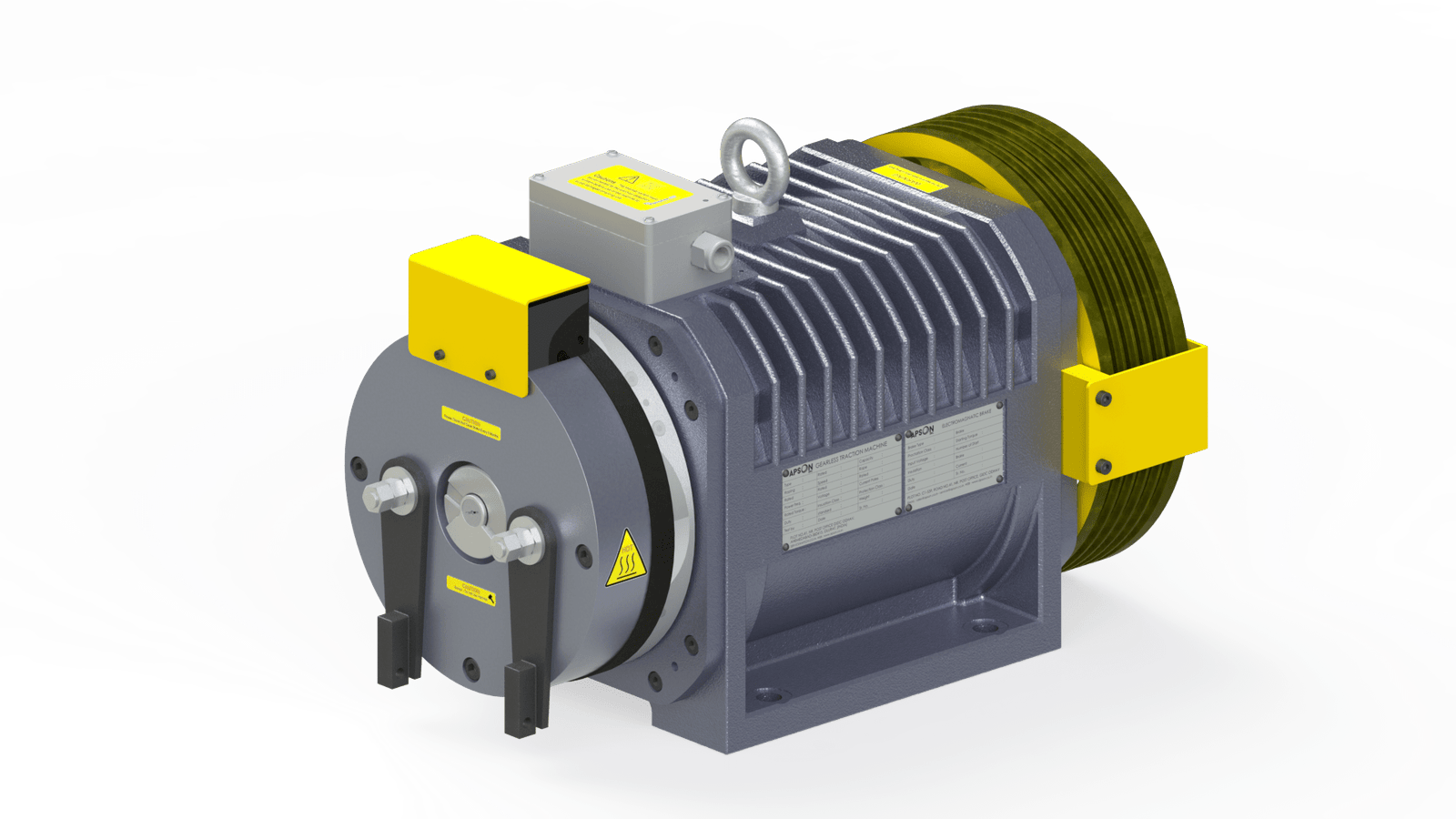

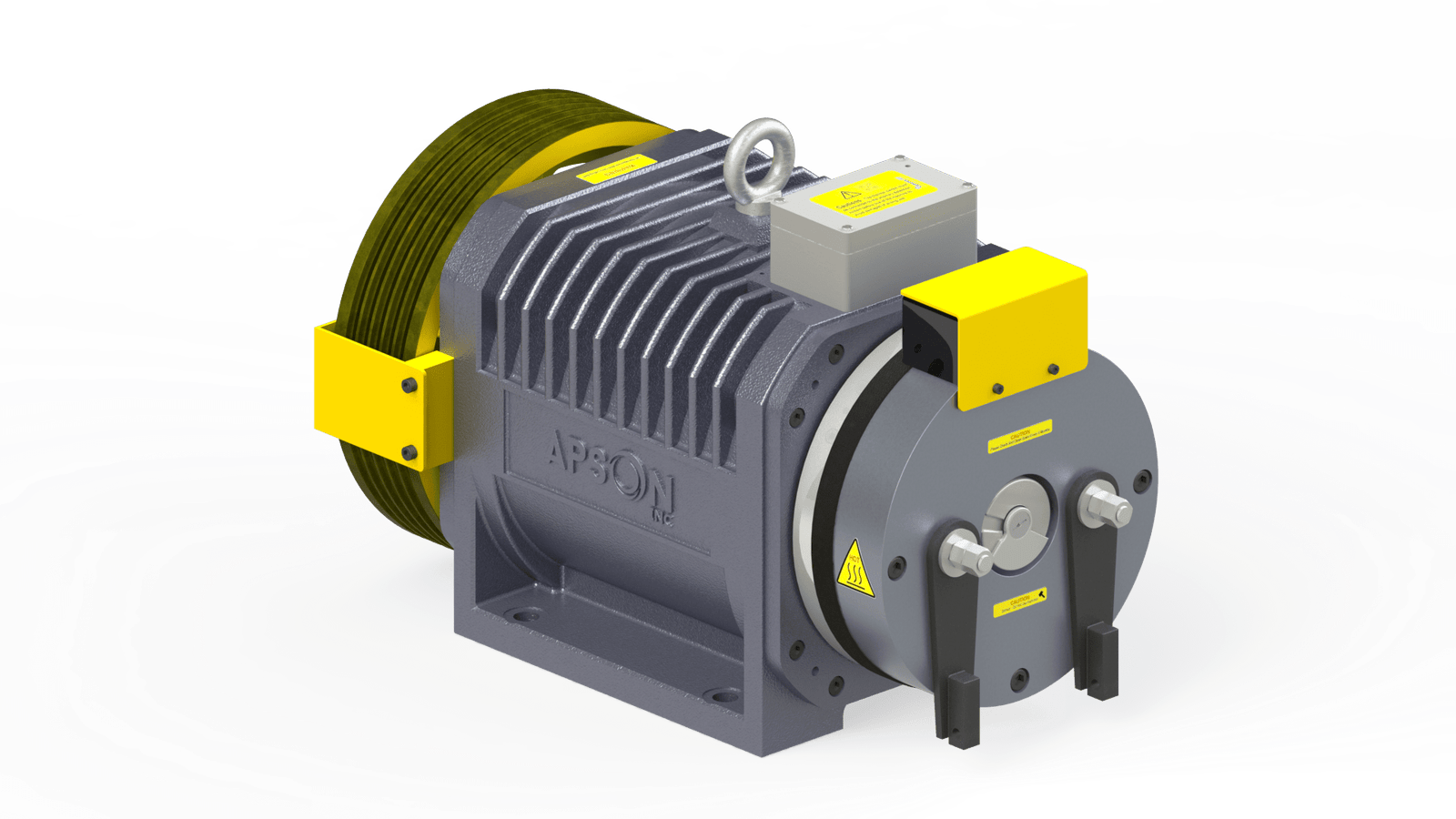

IR630-100 (AC380V – Ø320 mm)
Description
The IR630-100 is a robust gearless elevator traction machine designed for mid-to-high-range elevator applications. Operating at AC 380 V with a Ø320 mm sheave, it delivers dependable performance with smooth acceleration and ride quality. Engineered for precision and durability, the IR630-100 supports efficient elevator operation with strong torque and long-term reliability, making it an ideal choice for modern commercial and residential installations.
Additional information
| By Technology | Inner Rotor |
|---|---|
| By Type | MRL Application |
| By Capacity | 630 kg |
| By Speed | 1.00 m/s |
| Rated Voltage | AC380V |
| Rated Output Power | 4.20 kW |
| Rated Current | 14.0 A |
| Rated Speed | 119 rpm |
| frequ | 23.9 Hz |
| Sheave Dia | Ø320 mm |
| torque | 336 N.m. |
| Duty Cycle | S5-40% |
| Starts Per Hour | 240 ST/H |
| Max Static Load | 3000 kg |
| Pulley Groove Type | Undercut 'U' |
| Roping Style | 02:01 |
| pole | 24 |
| IP Rating | IP41 |
| Insulation Class | F |
| ropes | 5 × Ø8 × 12 |
