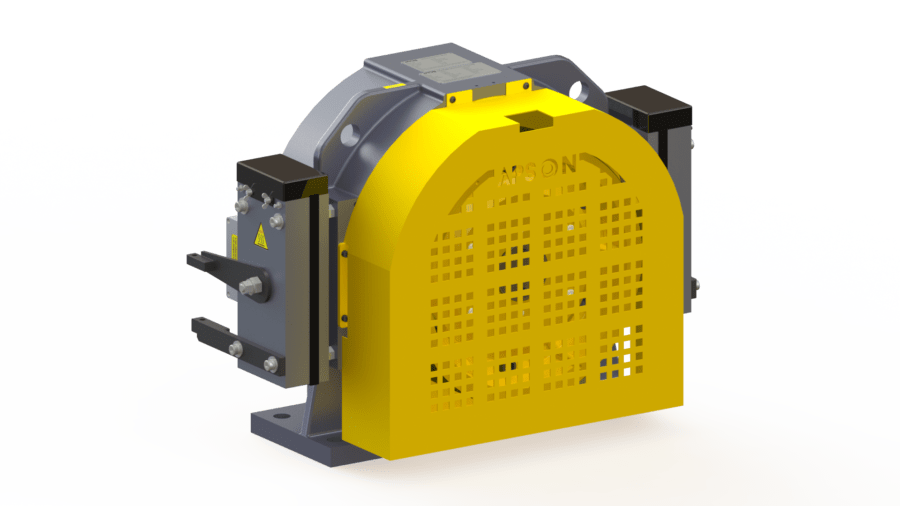

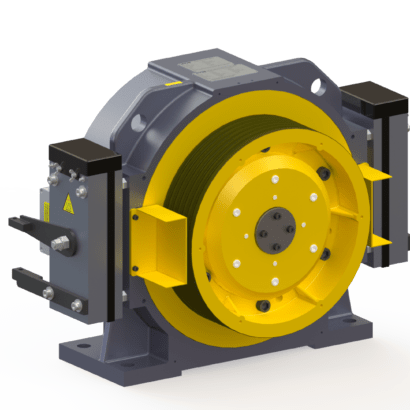

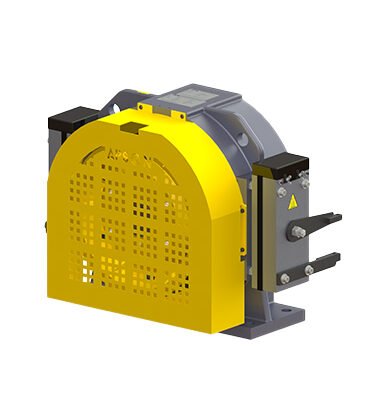

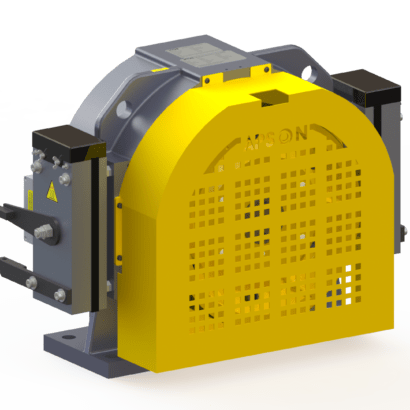

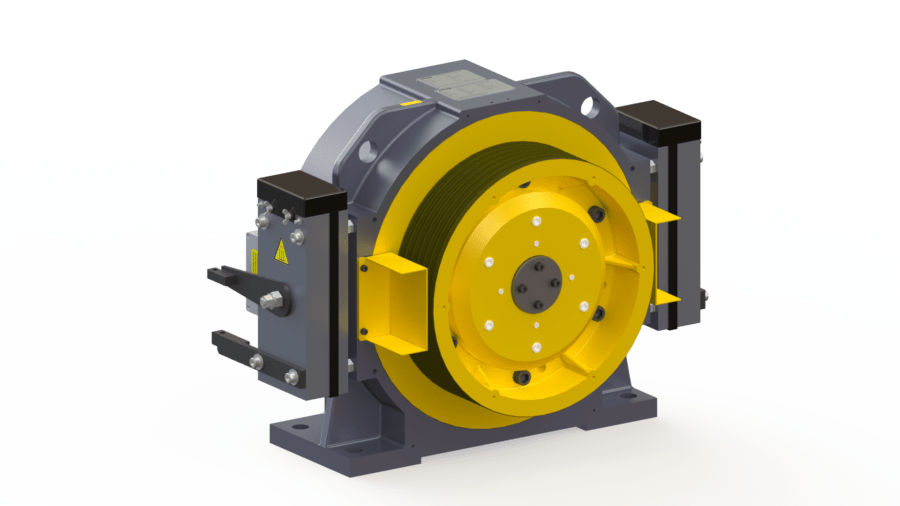

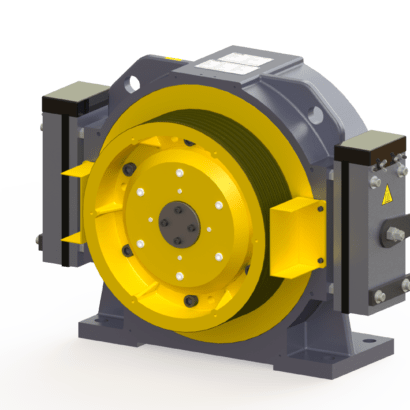

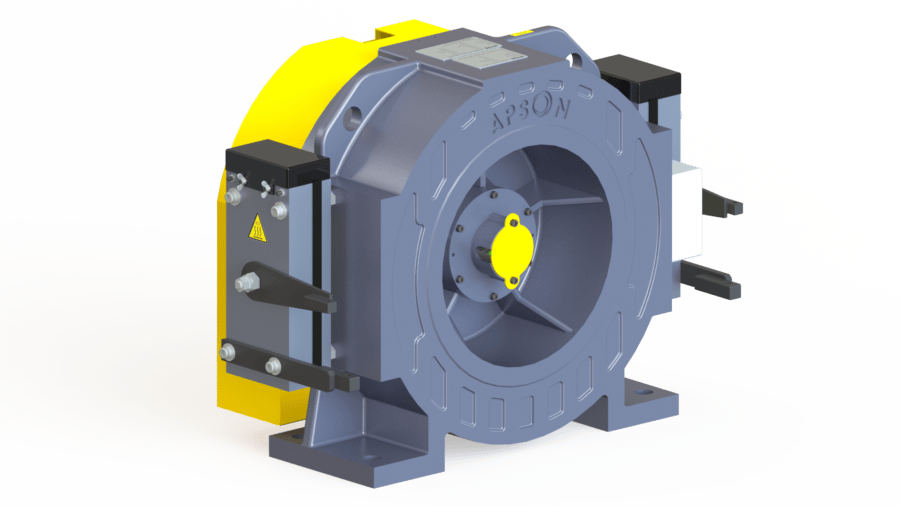

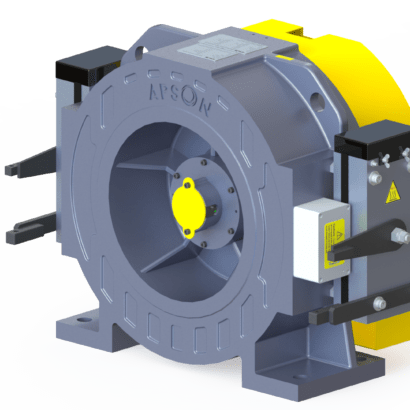

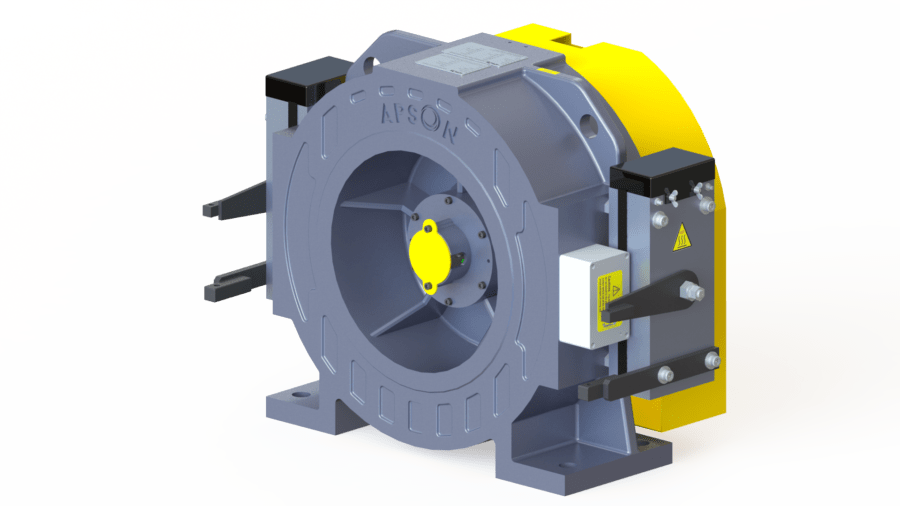

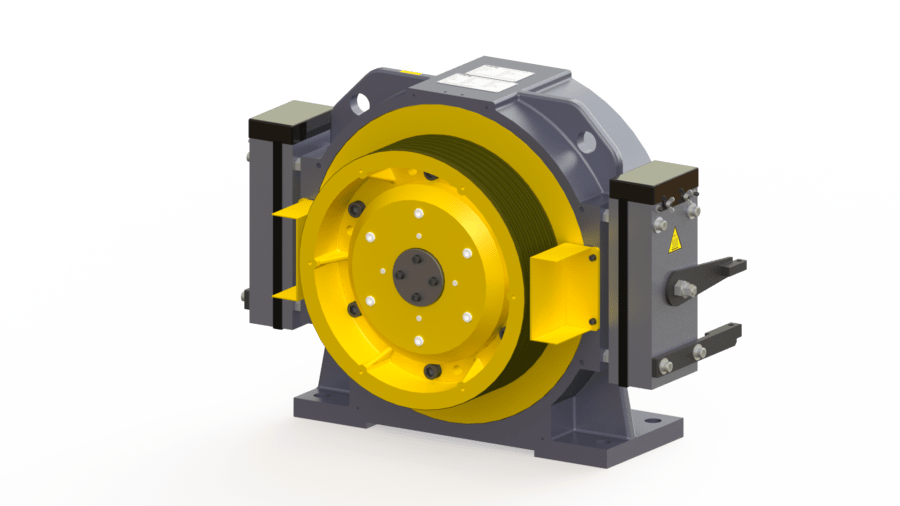

OR630-100 (AC380V – Ø320 mm)
Description
The OR630-100 is a high-efficiency gearless elevator traction machine optimized for mid-range applications. Operating at AC 380 V with a Ø320 mm sheave, it delivers smooth, reliable performance, strong torque, and excellent energy efficiency. Engineered for precision and long-term durability, the OR630-100 is an ideal choice for commercial and residential elevators seeking consistent operation and superior ride quality.
Additional information
| By Technology | Outer Rotor |
|---|---|
| By Type | MRL Application |
| By Capacity | 630 kg |
| By Speed | 1.00 m/s |
| Rated Voltage | AC380V |
| Rated Output Power | 4.00 kW |
| Rated Current | 12.0 A |
| Rated Speed | 119 rpm |
| frequ | 23.9 Hz |
| Sheave Dia | Ø320 mm |
| torque | 320 N.m. |
| Duty Cycle | S5-40% |
| Starts Per Hour | 240 ST/H |
| Max Static Load | 2500 kg |
| Pulley Groove Type | Undercut 'U' |
| Roping Style | 02:01 |
| pole | 24 |
| IP Rating | IP41 |
| Insulation Class | F |
| ropes | 5 × Ø8 × 12 |
